Infrared Windows

Platinum Series CAP-CT

  • Light weight aluminum construction NEMA 4 / IP65 design
  • 4 standard sizes; custom sizes available upon request
  • Largest IR viewing area in the industry

CAP-ENV

  • All stainless steel construction NEMA 6 / IP67 design for outdoor & MV installations
  • Largest IR viewing area in the industry
  • Arc Tested to IEC 62271-200

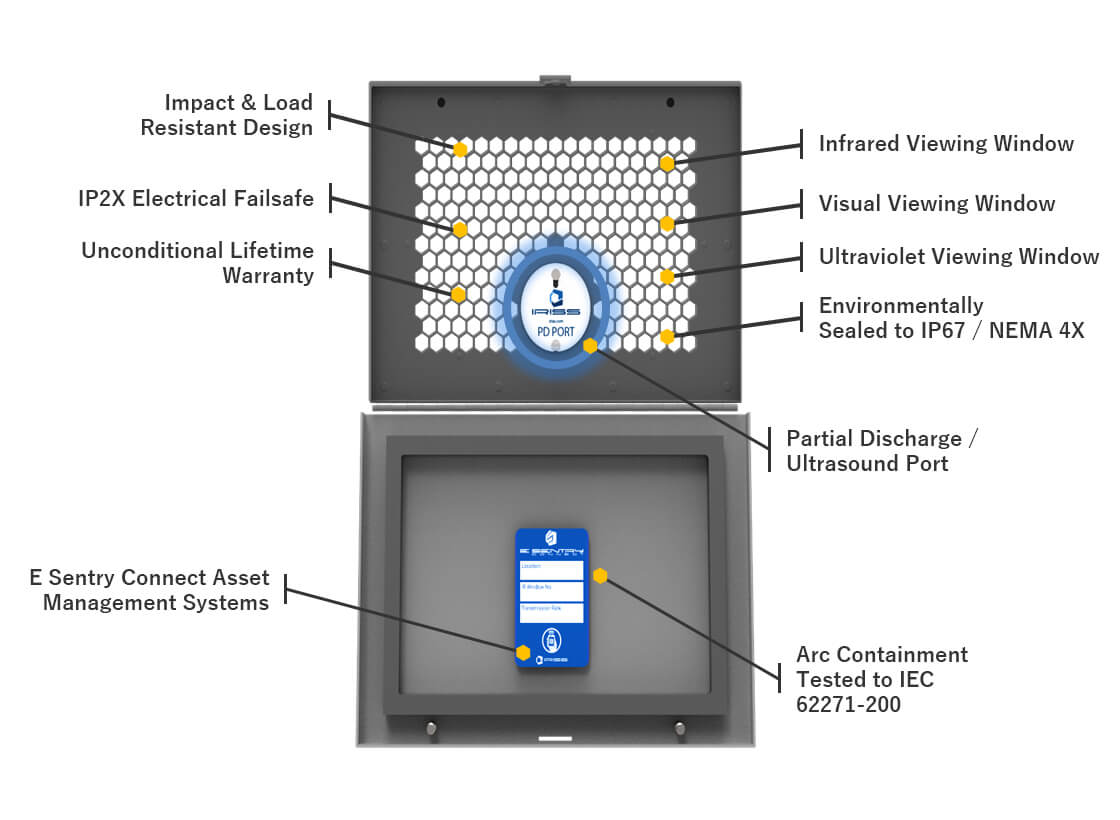

CAP-ENV-PD

  • All stainless steel construction NEMA 6 / IP67 design for outdoor & MV installations
  • Largest IR viewing area in the industry
  • Arc Tested to IEC 62271-200

CAP-4-US

  • Combination small format rectangular IR window and Ultrasound Port
  • Ideal format for Low Voltage applications on MCC, Dry transformer, Panelboard and Switchboard
  • Superior field-of-view compared to round windows

VP-12-US

  • Small formal ultrasound port for low and medium voltage applications
  • Low cost solution for partial discharge monitoring (arcing, tracking and corona detection)
  • Simple installation with template provided

Platinum Series VPT

  • Industrial grade IR window for heavy duty applications
  • Clear reinforced polymer optic for short, mid and long wave Infrared; Ultraviolet and visible spectrums
  • Arc Tested to IEC 62271-200

VPFC

  • Laboratory grade IR window for light duty applications
  • Crystal optic coated to reduce transmission drift
  • Larger usable optic size than competitor’s crystal windows
  • Upgradeable in field to polymer optic

VP-12-IR

  • Small format IR window for panels with limited available space
  • Low cost solution ideal for single target viewing
  • Simple installation with template provided

Product Comparison

Features
Shape
IR Optics
Body Material
Cover Material
Lockable Cover
Reinforcing Grill(IP22／IP2x standard)
Fixed and Stable Transmission (FAST)
Compatibility with Acids, Alkalis, UV, Moisture, Humidity, Vibration and High Frequency Noise
Impact Resistant
E Sentry Connect-Asset Tags included
CAP-ENV CAP-CT CAP-F CAP-B-ENV CAP-CT-4-US VPT VPFC VP-12-US VP-12-IR
Square Square Square Square Square Round Round Round Round
Polymer Polymer Polymer Polymer Polymer Polymer Calcium Fluoride N/A Polymer
Stainless Steel Aluminum Aluminum Aluminum Aluminum Nylon 6 Plastic Nylon 6 Plastic Nylon 6 Plastic Nylon 6 Plastic
Stainless Steel Aluminum Aluminum Aluminum Aluminum Stainless Steel Stainless Steel Stainless Steel Stainless Steel
〇 〇 〇 〇 〇 ☓ ☓ ☓ ☓
〇 〇 〇 〇 〇 〇 ☓ 〇 ☓
〇 〇 〇 〇 〇 〇 ☓ N/A ☓
〇 〇 〇 〇 〇 〇 ☓ 〇 〇
〇 〇 〇 〇 〇 〇 ☓ 〇 〇
〇 〇 〇 〇 〇 Optional Optional N/A Optional

⇦ Please scroll ⇨

Inspection Capabilities
Longwave IR
Midwave IR
Ultraviolet(UV)
Ultrasound
Allows visual Inspection
Medium/High Voltage Applications
CAP-ENV CAP-CT CAP-F CAP-B-ENV CAP-CT-4-US VPT VPFC VP-12-US VP-12-IR
〇 〇 〇 〇 〇 〇 〇 N/A 〇
〇 〇 〇 〇 〇 〇 〇 N/A 〇
〇 〇 〇 〇 〇 〇 〇 N/A 〇
Optional N/A N/A N/A 〇 N/A N/A 〇 N/A
〇 〇 〇 〇 〇 〇 〇 N/A ☓
〇 〇 〇 〇 〇 〇 ☓ 〇 〇

⇦ Please scroll ⇨

Certifications
UL 50V ＆ UL 50E
UL 746C ＆ UL 746A-2012
UL 1558
UL 508A／ANSI 508A
CSA C22.2 No.14-13
CSA C22.2 No.14-10
CSA C22.2 No.94-M91
CSA C22.2 No.94.1-07
CSA C22.2 No.94.2-07
IEEE C37.20.7 Type 2B
IEEE C37.20.2.a.3.6
IEC 62271-200
IEC 60298 Appendix A
IEC 60068-2-6:2007
IEC 60068-2-3
IEC 60068-2-78:2012
CE Marking
IP67/NEMA 6
IP65/NEMA 4
BSI Quality ISO 9001-2008
American Bureau of Shipping (ABS)
DNV P261.1E Maritime, Vessel and Offshore
Lloyds of London Type Approval
CAP-ENV CAP-CT CAP-F CAP-B-ENV CAP-CT-4-US VPT VPFC VP-12-US VP-12-IR
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 ☓ 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 ☓ 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 N/T 〇 〇 N/T 〇 N/T 〇 〇
〇 〇 〇 〇 〇 〇 ☓ 〇 〇
〇 N/T 〇 〇 N/T 〇 N/T N/T N/T
〇 N/T 〇 〇 N/T 〇 N/T 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 ☓ 〇 〇 ☓ 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇
〇 〇 〇 〇 〇 〇 〇 〇 〇

⇦ Please scroll ⇨
